IPC-2102 Industrial Computer

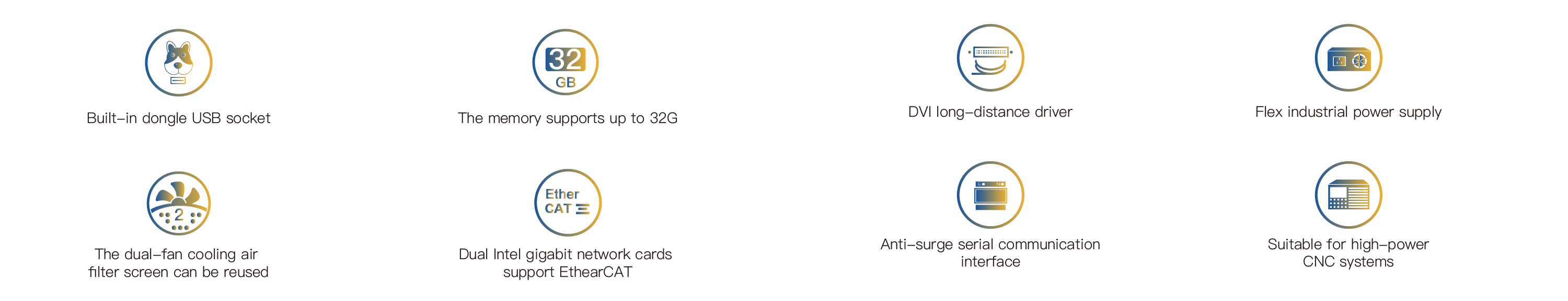

The IPC-2102 industrial control computer uses the 6th generation Intel? high-performance CoreTM i3/i5/i7 desktop CPU. Dual-fan positive air pressure dust-proof design, all-steel desktop or wall-mounted case. It supports 1 PCI bus expansion slot and 2 PCIe bus expansion slots, with good compatibility and the ability to expand various industrial control cards. It features 2 gigabit Ethernet ports and supports industrial real-time buses such as EtherCAT. Multiple USB2.0/3.0 interfaces, with one built-in USB2.0 encryption dog interface. 1 built-in miniPCIe interface for expanding WIFI/4G. The panel interface has VGA/DVI/HDMI display interfaces. Among them, the DVI interface supports long cable driving, which is convenient for equipment layout and operation. The whole machine is designed with EMC electromagnetic compatibility to ensure stable operation in a strong electromagnetic environment. The operating system supports Windows7, Windows10 and Linux. It has obtained CE and CB certifications, meeting the export requirements of the European Union.operating system supports Windows7, Windows10 and Linux. It has CE certification and CB certification, meeting the export requirements of the European Union.

Product manual（PDF） Technical data Ordering information

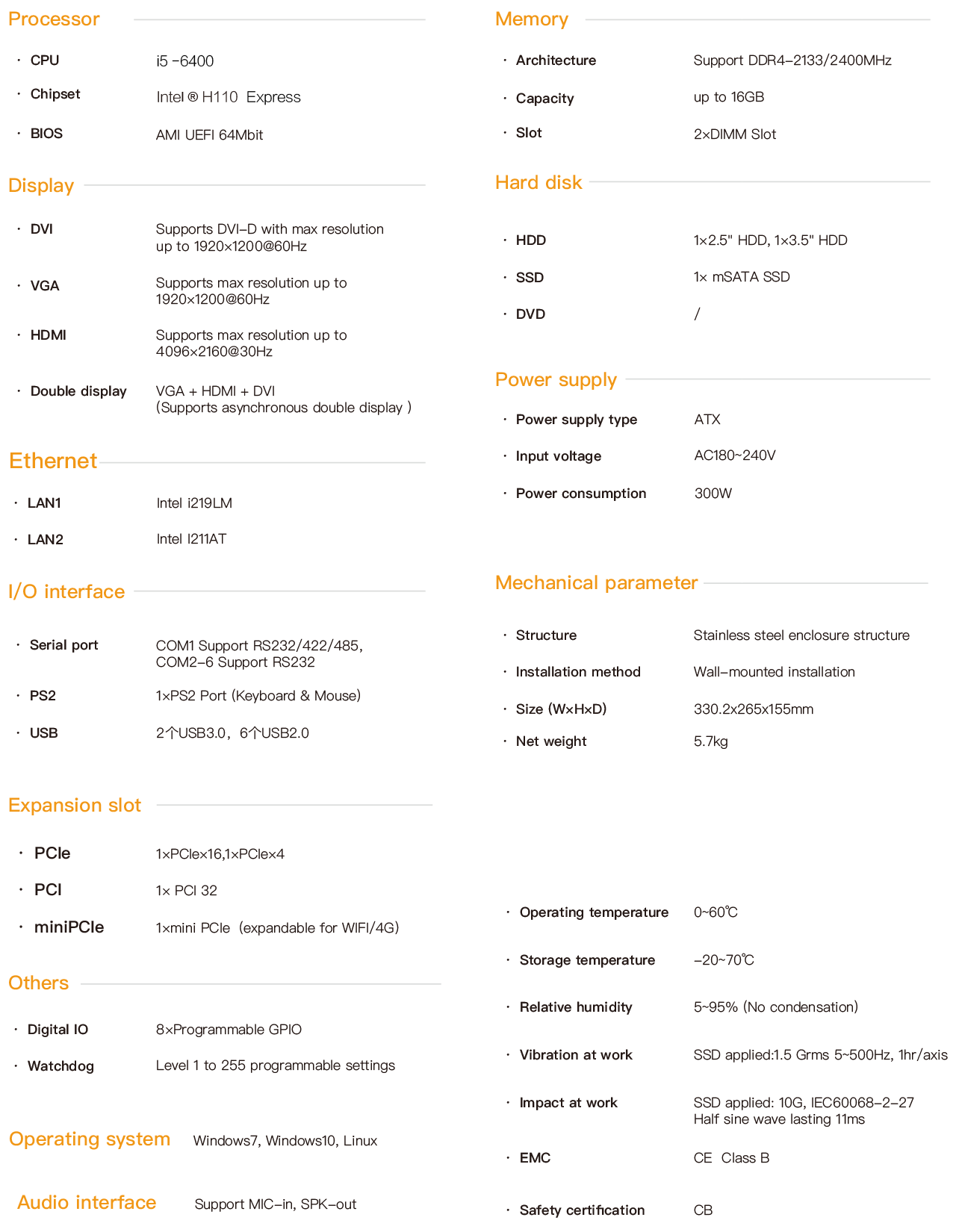

Product detailed specifications（IPC-2102 Industrial Computer)
