EPC-2832

EPC-2832 is a fanless industrial computer based on the IntelRIntel Core i3-1115G4 high-performance processor. Supports HDMI display interface. The product is equipped with rich I/O interfaces and has 2 Intel GbE gigabit network ports. 6 USB3.0 ports,4 optional USB2.0 interfaces,1 RS232/RS422/RS485 port,1 RS232 port,4 optional RS232 serial ports. 1 1*MINI-PCle expansion slot for expanding 3G/4G modules,1 *M.2 expansion slot for expanding wireless WIFI,1 M.2 hard disk interface for supporting SATA protocol SSD. The system IO interface is equipped with an EMC circuit, ensuring the reliability of the product and a lower failure rate. The product's appearance design is exquisite and robust. The large-area aluminum fin design quickly dissipates the heat of the processor. The fanless and fully enclosed structure effectively prevents dust from entering, ensuring the product operates reliably for a long time in harsh industrial environments. The whole machine is powered by DC12V to 24V. All interfaces are designed to be fastened tightly and have passed CE/FCC certification. It can be applied to harsh industrial sites. The operating system supports Windows10 and Linux.

Product manual（PDF） Technical data Ordering information

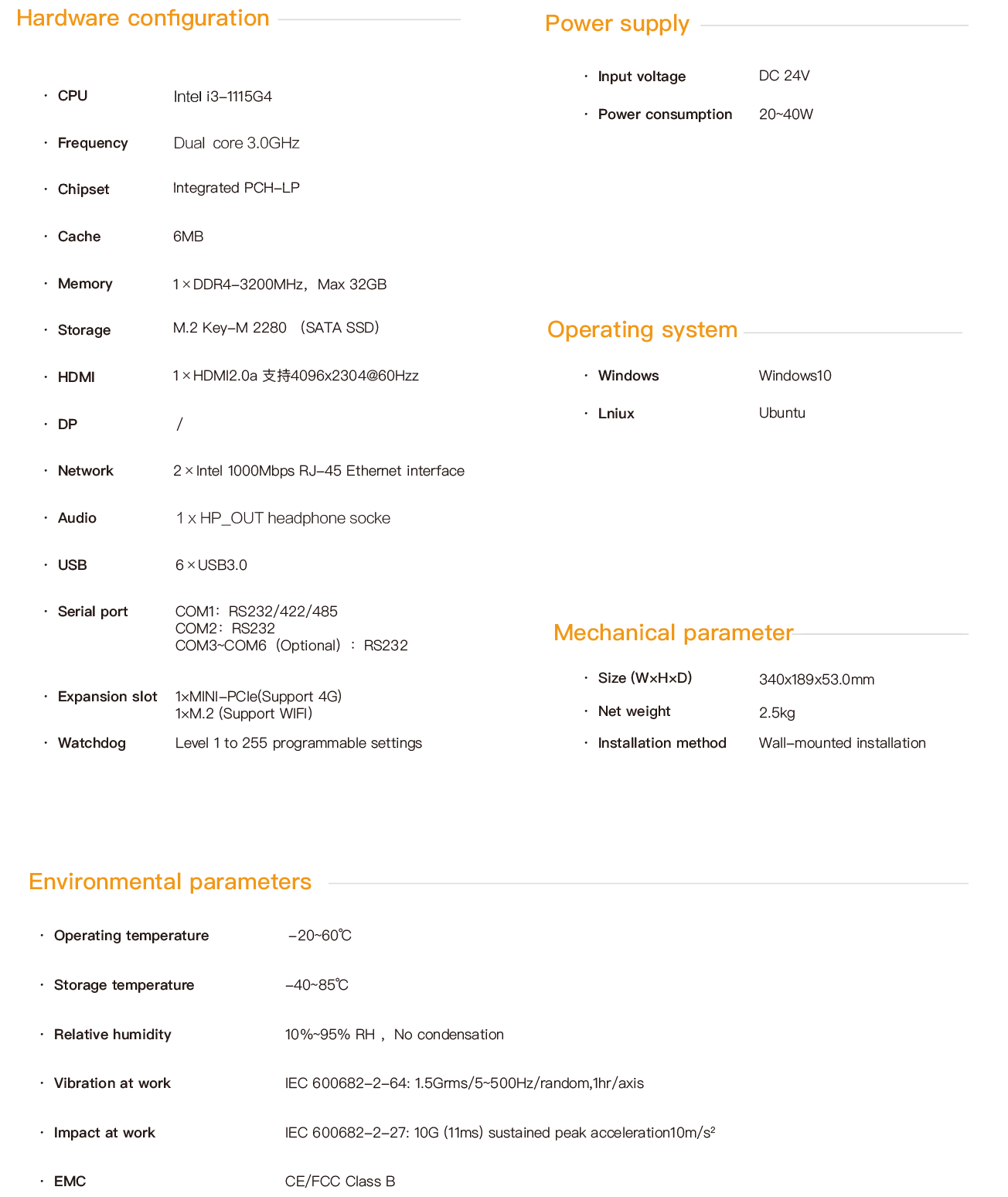

Product detailed specifications（EPC-2832)
