PD-8827

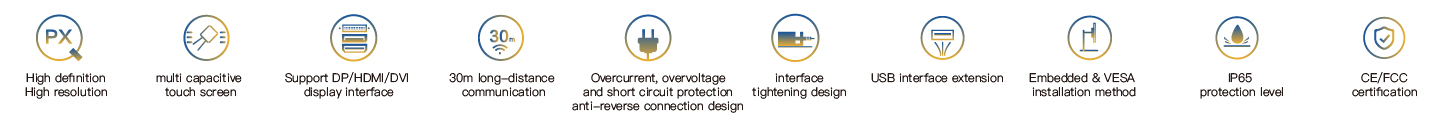

PD-8827 is a high-performance vertical industrial control panel. It is equipped with a 27-inch high-definition LCD liquid crystal screen and a projected multi-point capacitive touch screen. The whole machine adopts an integrated industrial design, which is convenient to operate and simple to maintain. It is very suitable for use in conjunction with CNC equipment. The high-definition LCD display supports the access of three signals: DVI-D, HDMI and DP. The power input connector adopts a green terminal with anti-reverse connection and fastening type to prevent the electronic components from being burned out by reverse connection and to prevent the connector from accidentally falling off during use. Both the software and hardware of the touch screen adopt anti-interference design to ensure a reliable touch experience under the interference of high-power motors, servos, etc. DVI, HDMI and DP video signals all support long-distance communication. It still maintains clear and stable image quality in a complex electromagnetic environment. It is equipped with a built-in USB-Hub, allowing users to connect multiple USB flash drives, Bluetooth, mice, keyboards, etc. simultaneously.

Product manual（PDF） Technical data Ordering information

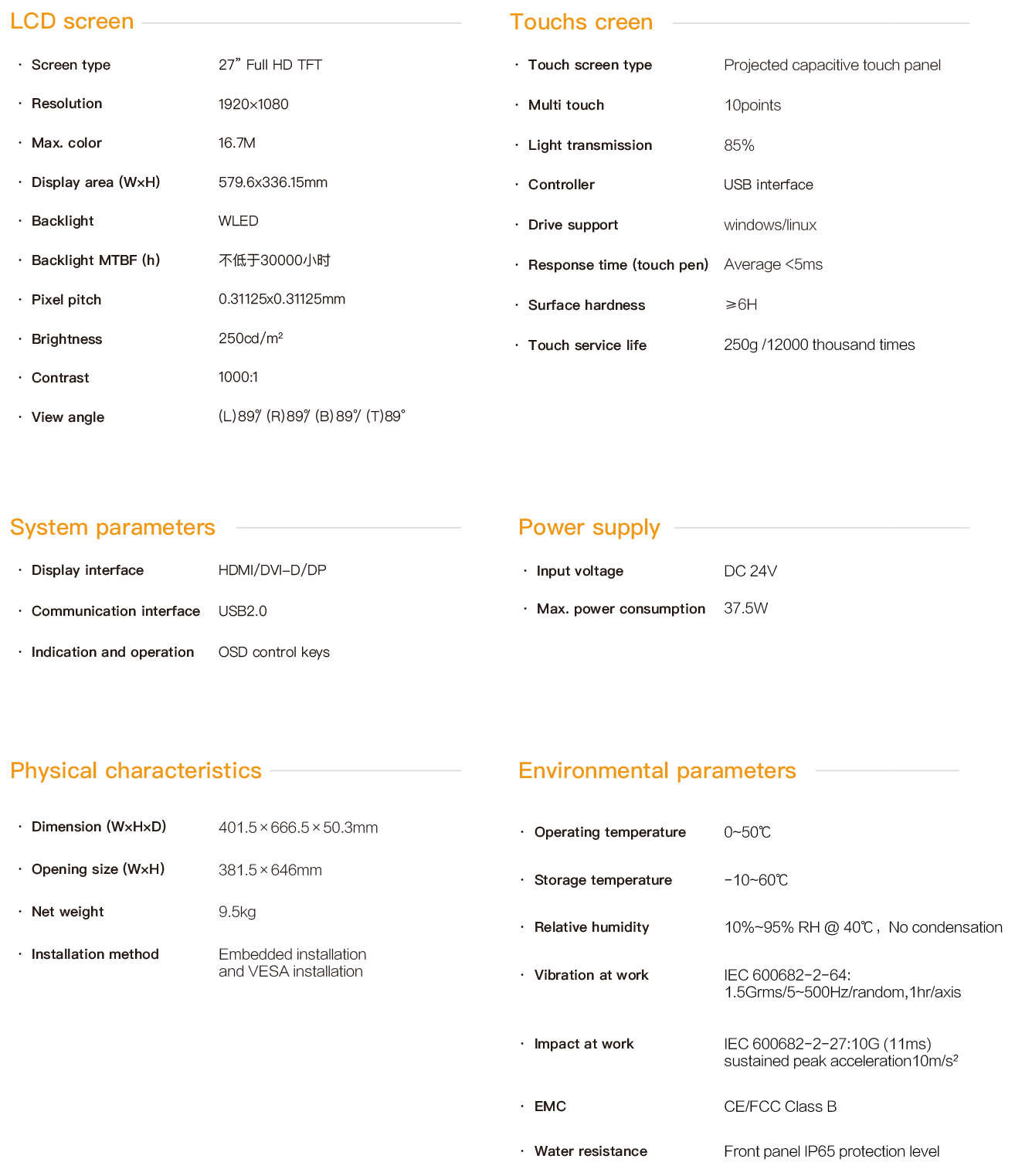

Product detailed specifications（PD-8827)

Product Consultation
